Medium / High-Pressure Series · Valves
Medium- and high-pressure valves
Two ways to browse: pick by valve function (needle / ball / check / relief — across both pressure classes), or open a full pressure-class series catalog to see every valve in the medium- or high-pressure family in one PDF.
Function-based catalogs
Browse by valve function

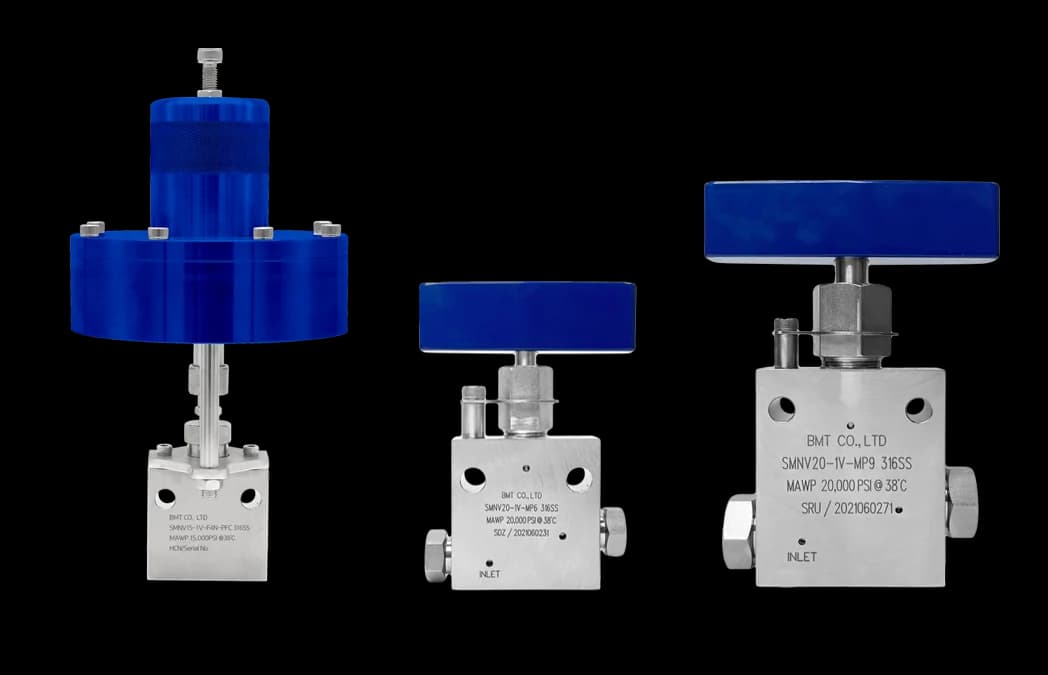

- Medium / High-Pressure Needle Valves
Needle valve catalogs for medium- and high-pressure applications, covering coned-and-threaded connections, multiple pressure classes and compact bar stock variants.

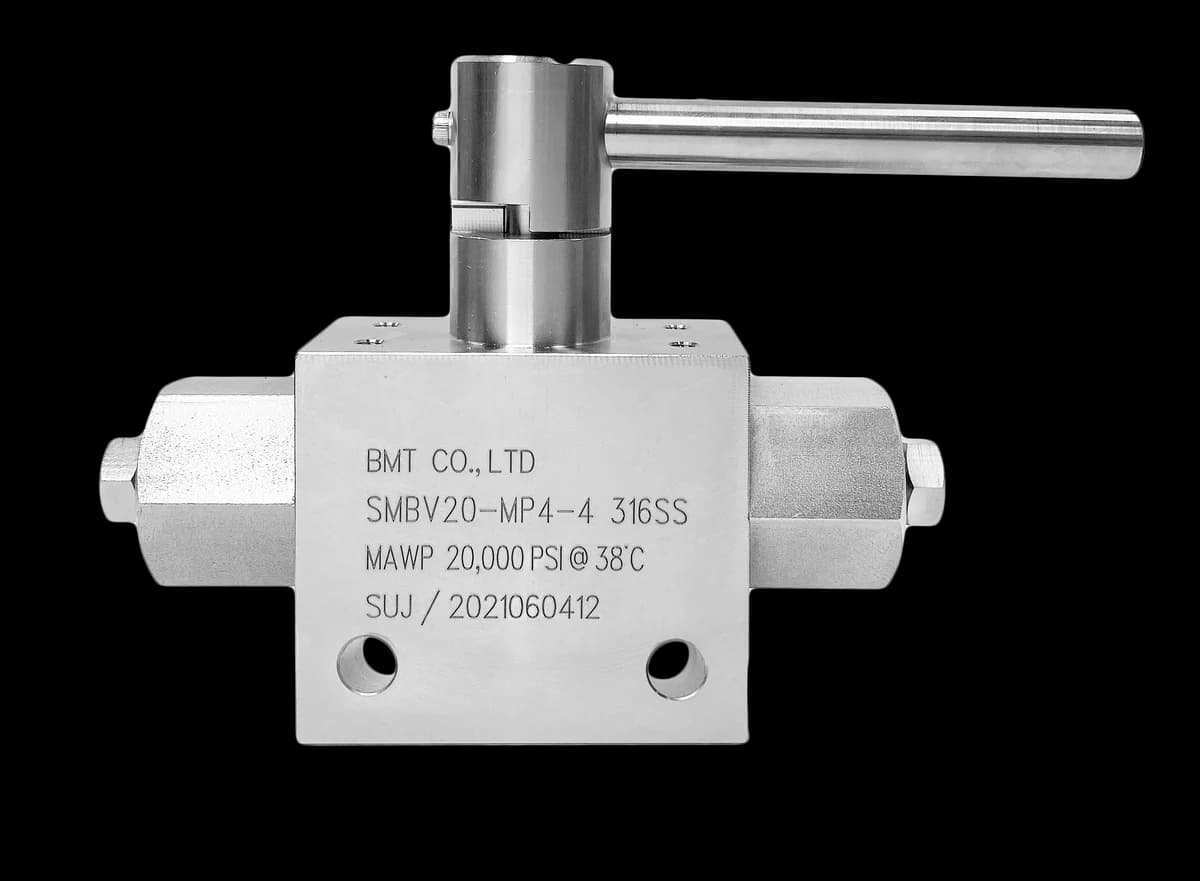

- Medium Pressure Ball Valves
Medium-pressure trunnion-mounted ball valves (SMBV10/15/20) for two-way and three-way isolation up to 20,000 psi.

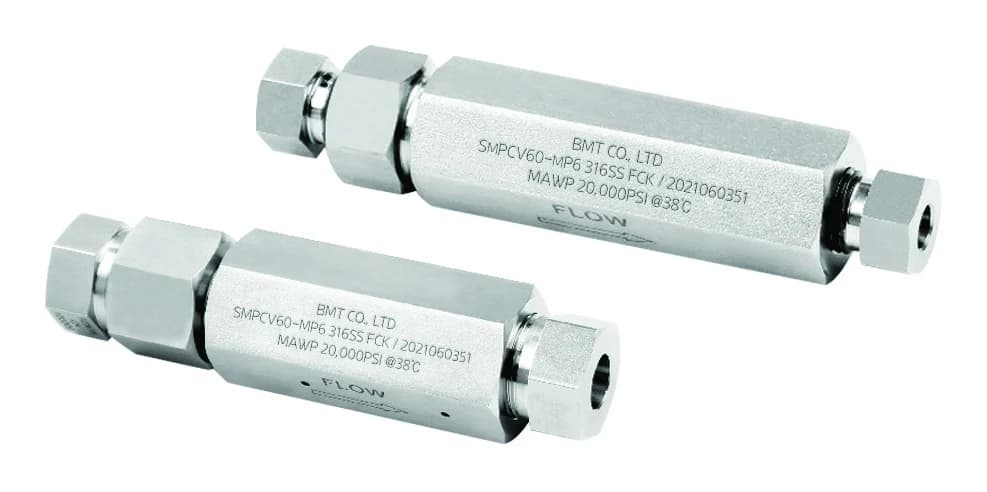

- Medium / High-Pressure Check Valves
Check valve catalogs for medium- and high-pressure directional flow control, including a panel-mountable manifold check valve variant.

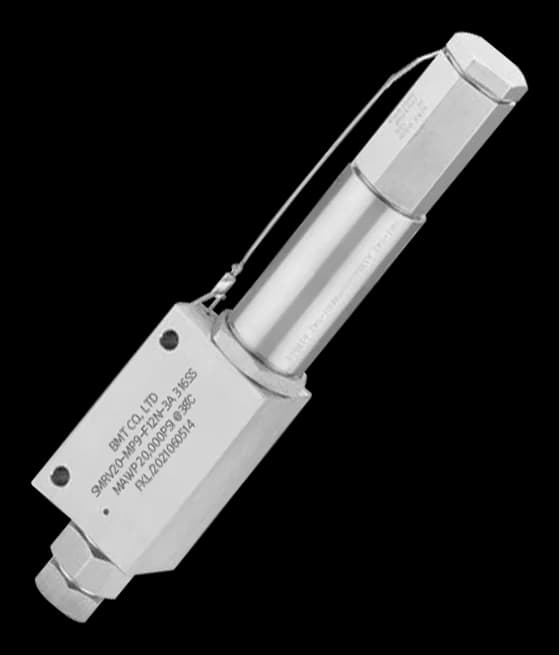

- Medium / High-Pressure Relief Valves
Relief valve catalogs for medium- and high-pressure systems where set pressure, maximum back pressure and application suitability must be confirmed against the catalog.
Pressure-class series catalogs
Browse by pressure class
One catalog per pressure class. Each combines every valve in that pressure class — useful when you already know the working pressure and want to compare valve types together.
Medium Pressure Valves Series
Medium Pressure Valves Series catalog covering needle, ball, check and relief valves plus a hydrogen pressure regulator section, for systems up to 20,000 psi depending on configuration.
1 catalog · 5 sectionsView →High Pressure Valves Series

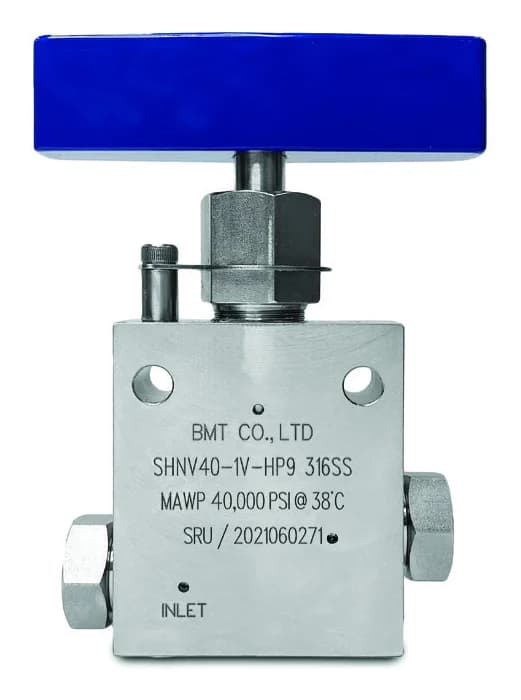

High Pressure Valves Series catalog covering needle, check and relief valves for systems requiring pressure ratings up to 60,000 psi depending on selected product and configuration.
1 catalog · 3 sectionsView →
