Medium / High-Pressure Series
Medium- and high-pressure tubing fittings, valves & components
BMT Superlok's medium- and high-pressure family covers the BMT-patented Pre-Forming fitting, MP and HP cone & thread fittings, needle / ball / check / relief valves across both pressure classes, the SHR high-pressure hydrogen regulator and the SMFCV manifold check valves. Selection in this family is driven primarily by tube material, working pressure and end connection — refer to each catalog for limits and ordering data.
Supplied by Tubing Supply · Produced by BMT Superlok.
Fittings
Fittings
Pre-Forming and conventional cone & thread fittings for medium- and high-pressure tubing systems.
Pre-Forming Fitting
BMT-patented Pre-Forming fitting for medium- and high-pressure tubing where increased fatigue life and faster installation are required compared with conventional cone & thread.

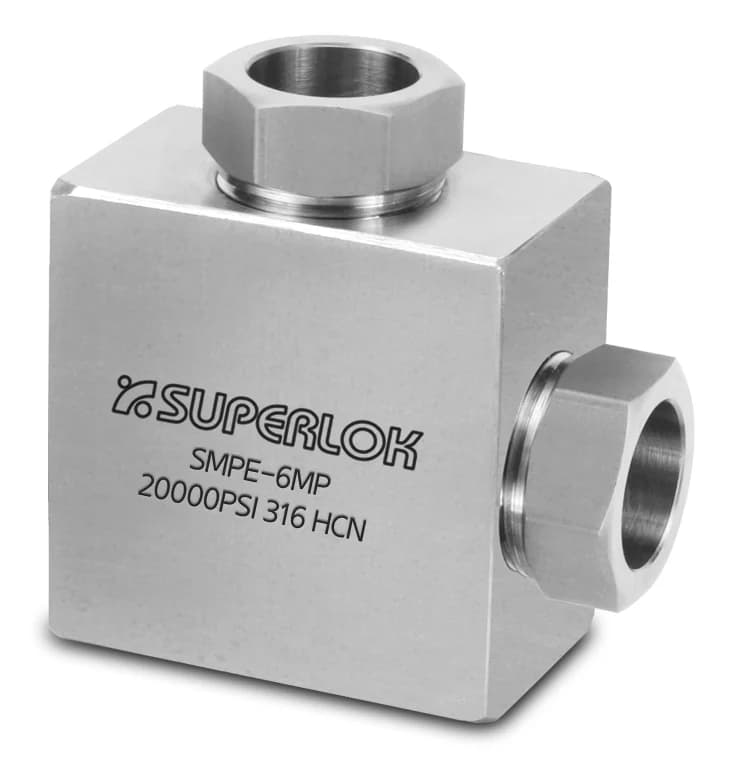

1 catalogView →Medium Pressure Fittings
MP Series cone & thread medium-pressure fittings for hydraulic and high-pressure tubing systems.

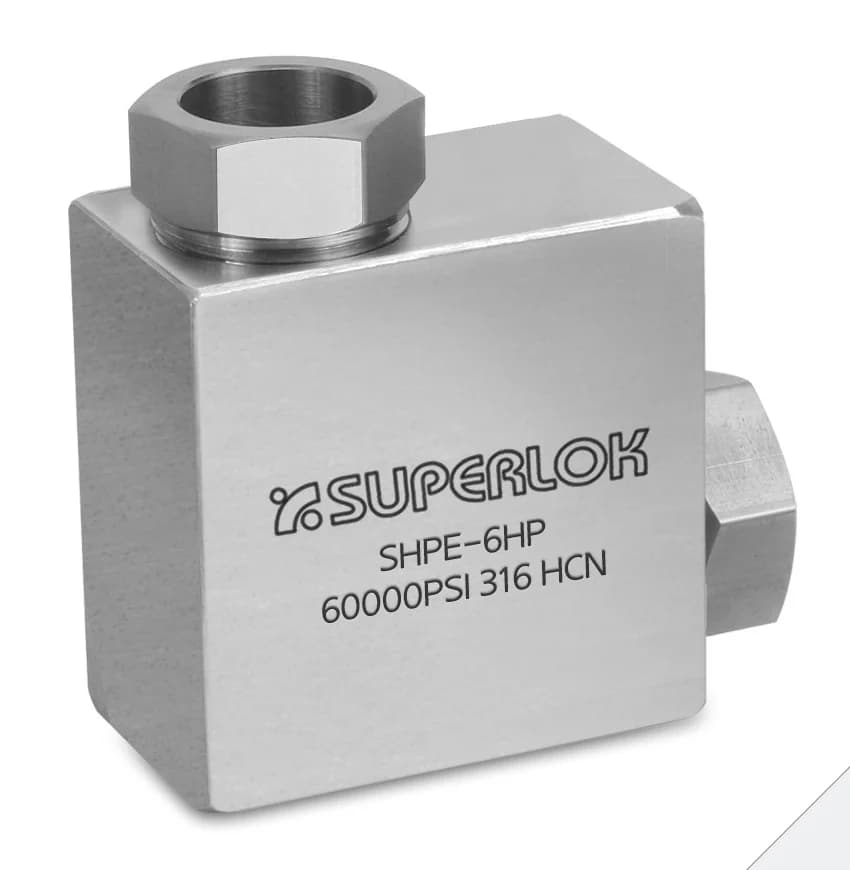

1 catalogView →High Pressure Fittings
HP Series cone & thread high-pressure fittings for systems up to and beyond conventional medium-pressure ranges.
1 catalogView →
Valves
Valves
Needle, ball, check and relief valves across medium and high pressure classes — with both function-based catalogs and full pressure-class series catalogs.

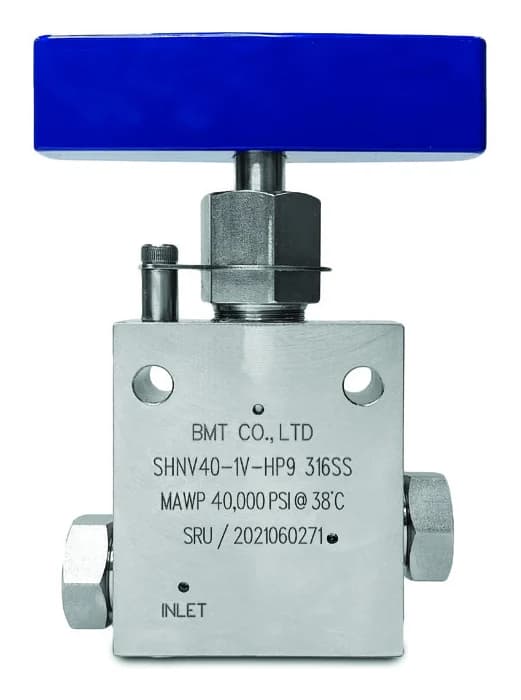

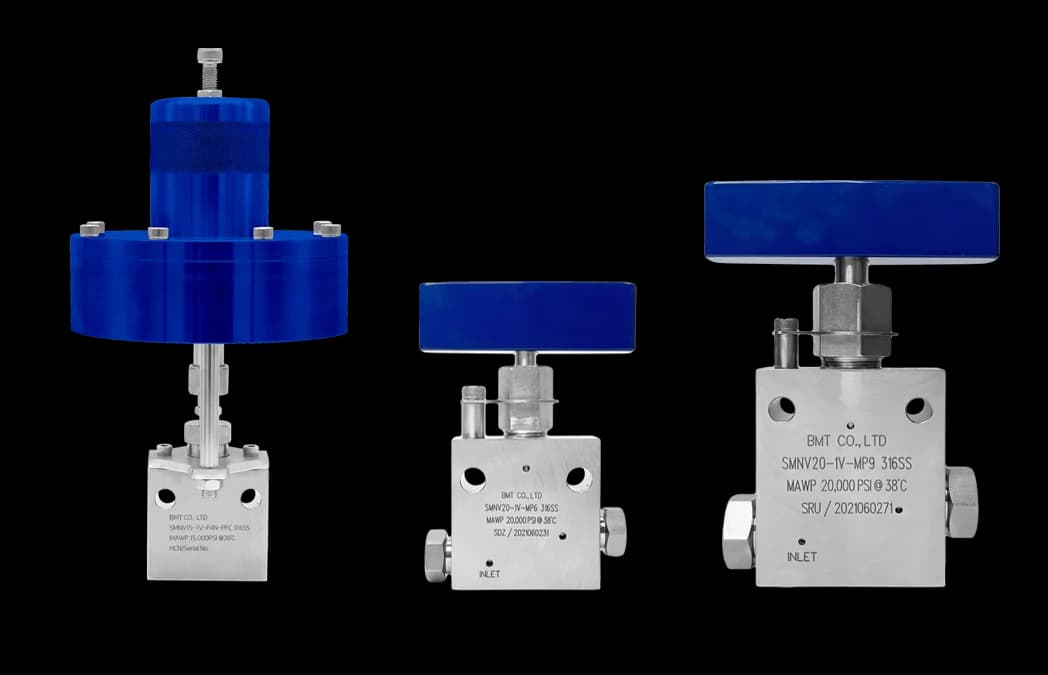

Medium / High-Pressure Needle Valves
Needle valve catalogs for medium- and high-pressure applications, covering coned-and-threaded connections, multiple pressure classes and compact bar stock variants.

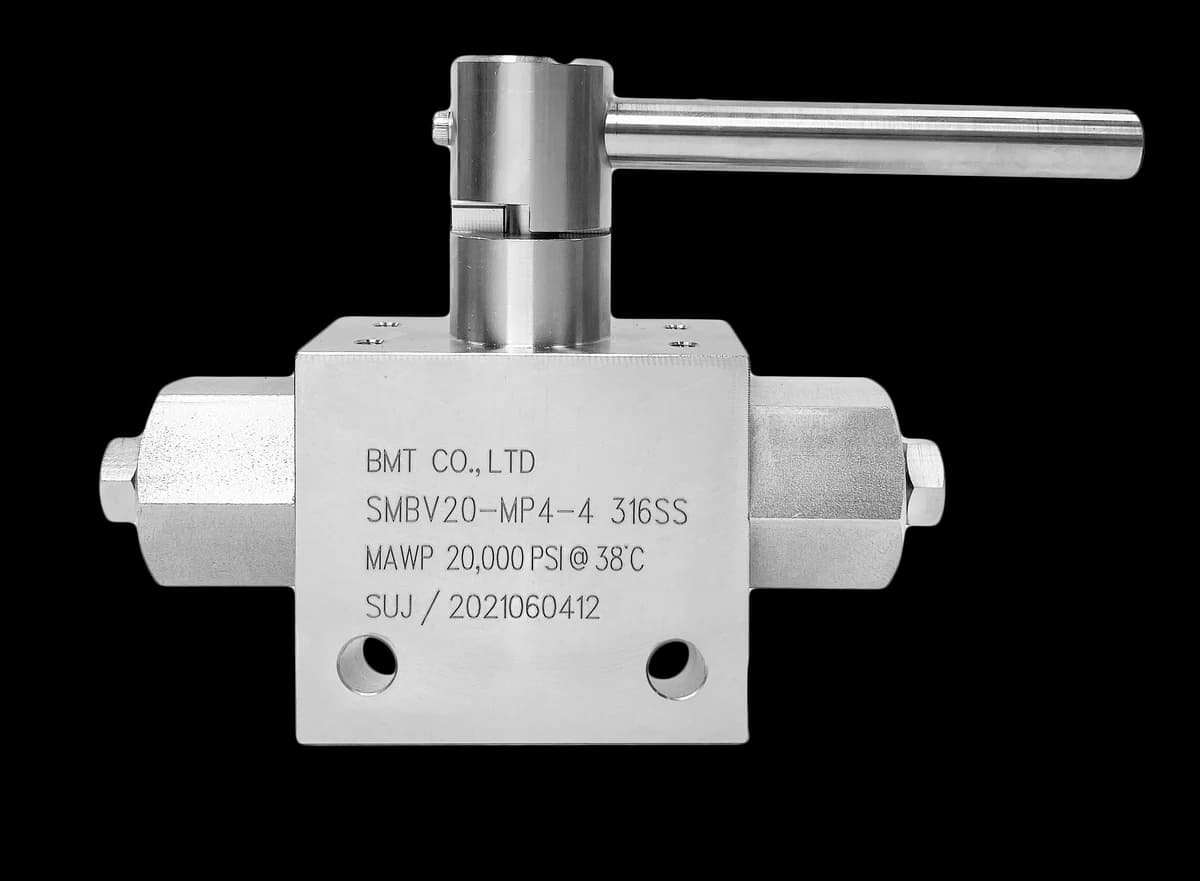

4 catalogsView →Medium Pressure Ball Valves
Medium-pressure trunnion-mounted ball valves (SMBV10/15/20) for two-way and three-way isolation up to 20,000 psi.

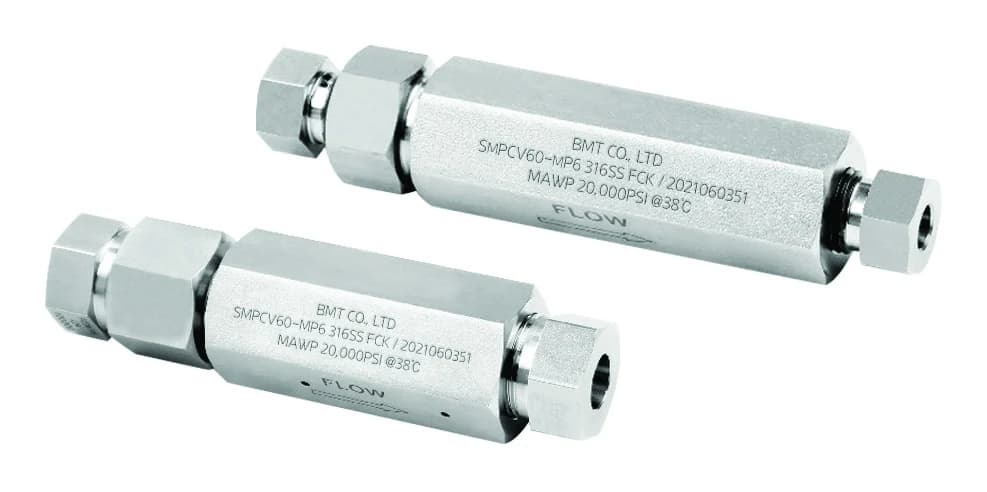

1 catalogView →Medium / High-Pressure Check Valves
Check valve catalogs for medium- and high-pressure directional flow control, including a panel-mountable manifold check valve variant.

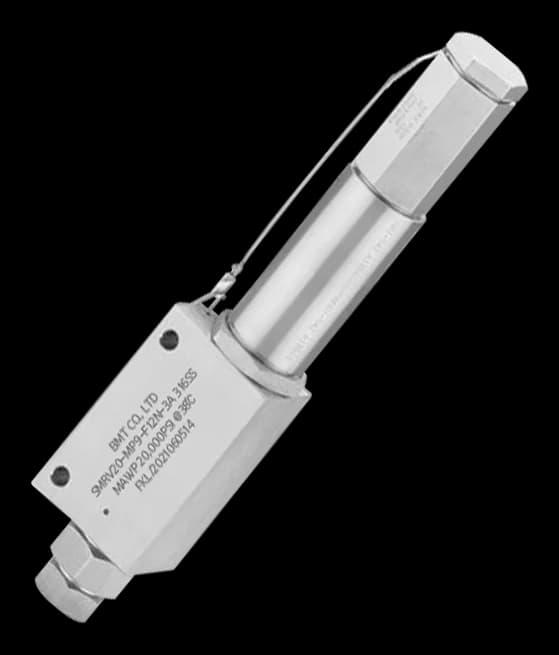

3 catalogsView →Medium / High-Pressure Relief Valves
Relief valve catalogs for medium- and high-pressure systems where set pressure, maximum back pressure and application suitability must be confirmed against the catalog.
3 catalogsView →Medium Pressure Valves Series
Medium Pressure Valves Series catalog covering needle, ball, check and relief valves plus a hydrogen pressure regulator section, for systems up to 20,000 psi depending on configuration.
1 catalog · 5 sectionsView →High Pressure Valves Series
High Pressure Valves Series catalog covering needle, check and relief valves for systems requiring pressure ratings up to 60,000 psi depending on selected product and configuration.
1 catalog · 3 sectionsView →
Components
Components
High-pressure hydrogen regulator, manifold check valves and Pre-Forming production tooling.

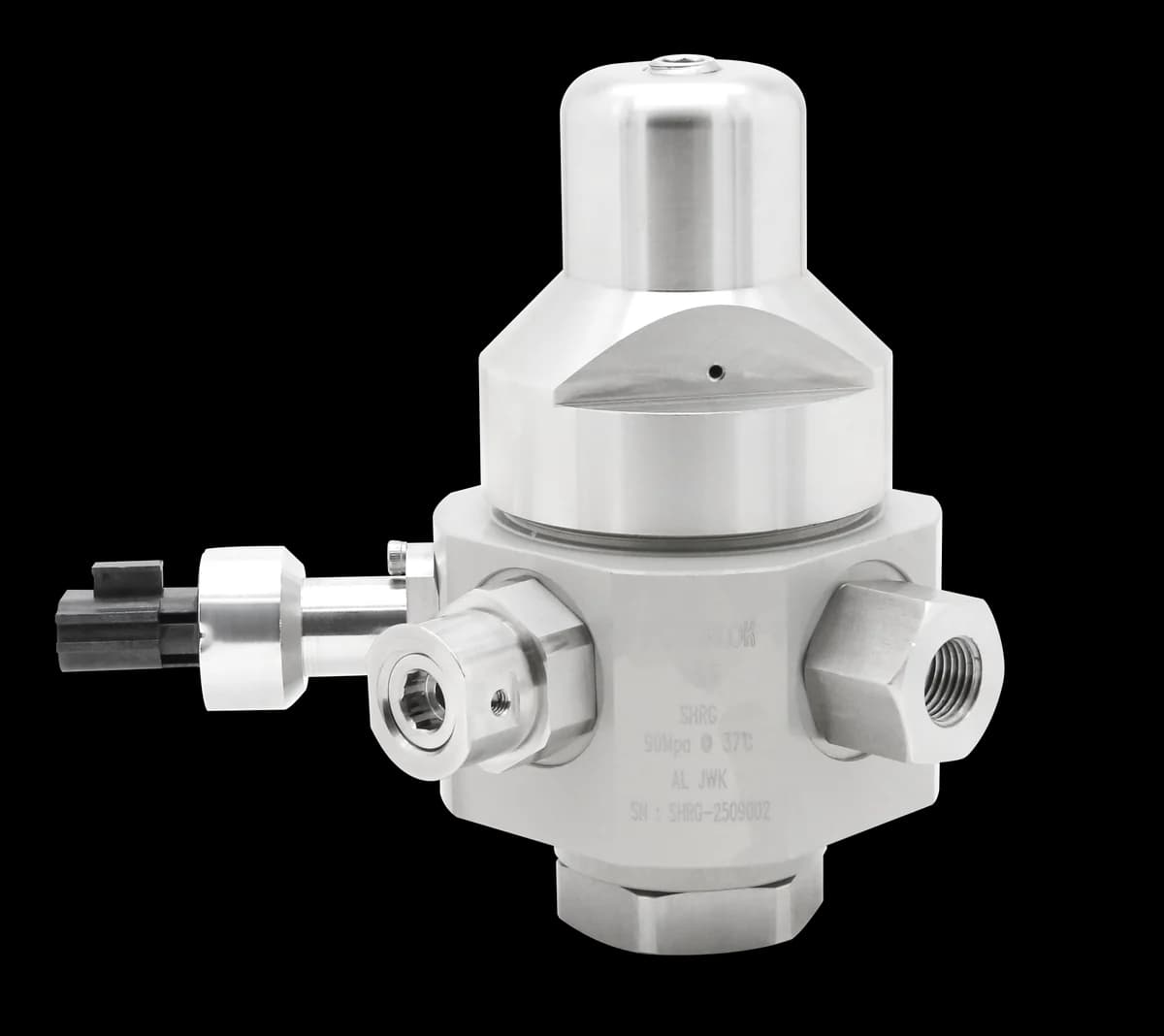

High Pressure Hydrogen Regulators
Compact SHR Series high-pressure hydrogen regulator for pressure reduction and control in hydrogen applications.
1 catalogView →High Pressure Manifold Check Valves

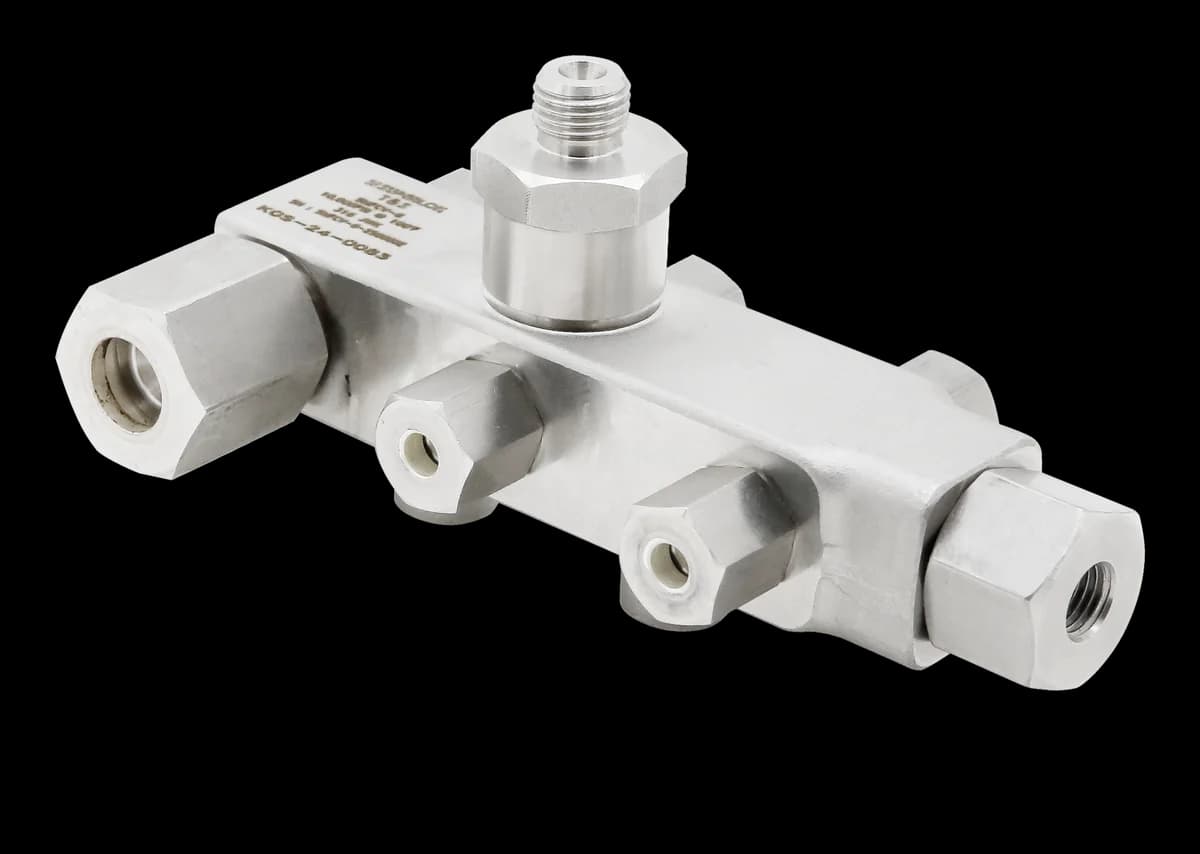

SMFCV integrated high-pressure manifold check valves for compact, panel-mountable systems with multiple ports.

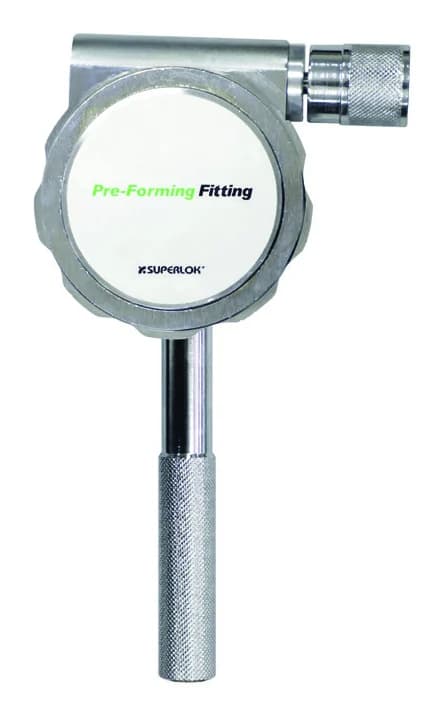

1 catalogView →Pre-Forming Tools
Manual and automatic Pre-Forming tools used to work-harden tube ends prior to assembly with the BMT-patented Pre-Forming fitting.
Tooling referenceView →
