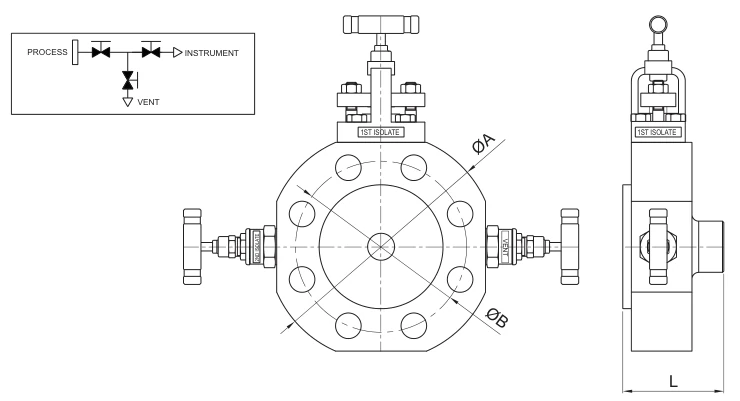

Manufacturer MF1V4 family illustration; bonnet arrangement may differ.
Block & bleed and monoflange valves · MF1V41
MF1V41-R24E8
Monoflange instrument valve
1 1/2 in flange × 1/2 in
Raised-face flange × Female NPT
316 Stainless Steel
Specification confirmation required. Confirm service conditions, pressure-temperature limits and project documentation with the quotation.
Quote request · price and delivery confirmed by our team.
Specifications
- Series
- MF1V41
- Dimensions
- 1 1/2 in flange × 1/2 in
- Connection
- Raised-face flange × Female NPT
- Material
- 316 Stainless Steel
- Flange class
- CL1500
- Isolation
- Two needle valves
- Vent
- 1/4 in Female NPT, needle vent
- Trim
- Same as body
Confirm service conditions, pressure-temperature limits and project documentation with the quotation.
Documentation & selection
Check the manufacturer's dimensions and operating limits for your application. Our team can help confirm material, connection and ordering options.
Your basket is a quote request. Availability, price and delivery are confirmed in our offer.
