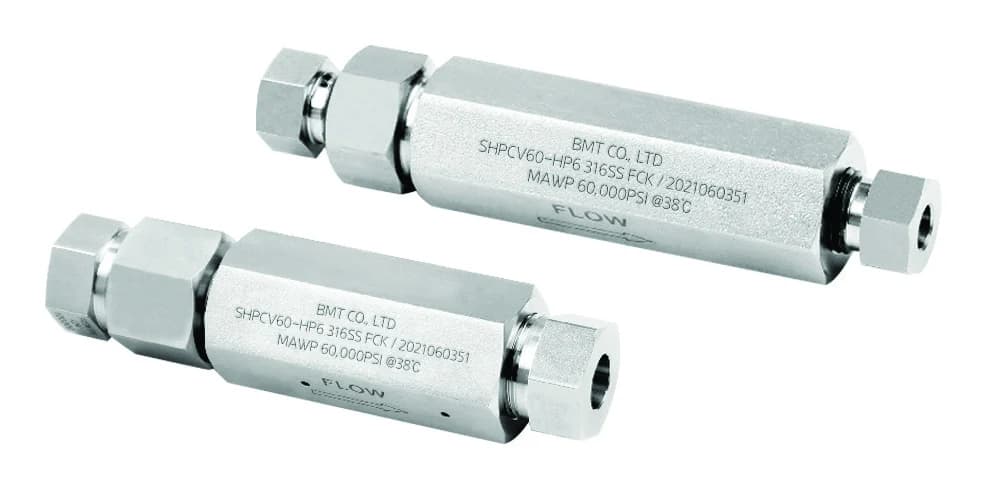

Manufacturer SHPCV exterior photograph; the selected metal ball poppet is not visible.
High-pressure valves · SHPCV60
SHPCV60-HP4-BP
High-pressure check valve
1/4 in
High-pressure cone & thread
316 Stainless Steel
Quote request · price and delivery confirmed by our team.
Specifications
- Series
- SHPCV60
- Dimensions
- 1/4 in
- Connection
- High-pressure cone & thread
- Material
- 316 Stainless Steel
- Connection
- 1/4 in High-pressure cone & thread
- Poppet
- Metal ball
- Seal
- Metal-to-metal; no O-ring
- Cracking pressure range
- 14–26 psig
- Catalog working pressure
- 60,000 psig at 38°C; subject to component limits
Not a relief valve. Metal ball type is for applications where leak-tight shut-off is not mandatory. Confirm service conditions and component pressure-temperature limits with the quotation.
Documentation & selection
Check the manufacturer's dimensions and operating limits for your application. Our team can help confirm material, connection and ordering options.
Your basket is a quote request. Availability, price and delivery are confirmed in our offer.
