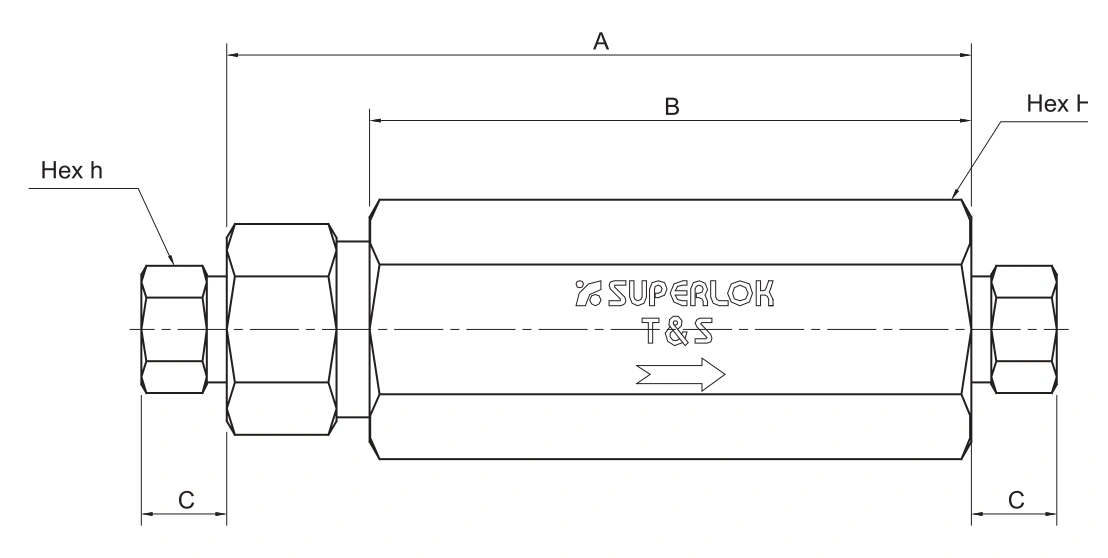

Manufacturer family image; the selected pre-forming end connection is not pictured.
Medium-pressure valves · SMPCV15
SMPCV15-8F
Medium-pressure check valve
1/2 in
Pre-forming
316 Stainless Steel
Quote request · price and delivery confirmed by our team.
Specifications
- Series
- SMPCV15
- Dimensions
- 1/2 in
- Connection
- Pre-forming
- Material
- 316 Stainless Steel
- Connection
- 1/2 in Pre-forming
- Poppet
- O-ring poppet
- Seal
- Viton
- Cracking pressure range
- 14–26 psig
- Catalog working pressure
- 15,000 psig at 38°C; subject to component limits
Not a relief valve. Confirm service conditions and component pressure-temperature limits with the quotation. Requires the matching SUPERLOK pre-forming tooling and installation procedure.
Documentation & selection
Check the manufacturer's dimensions and operating limits for your application. Our team can help confirm material, connection and ordering options.
Your basket is a quote request. Availability, price and delivery are confirmed in our offer.
