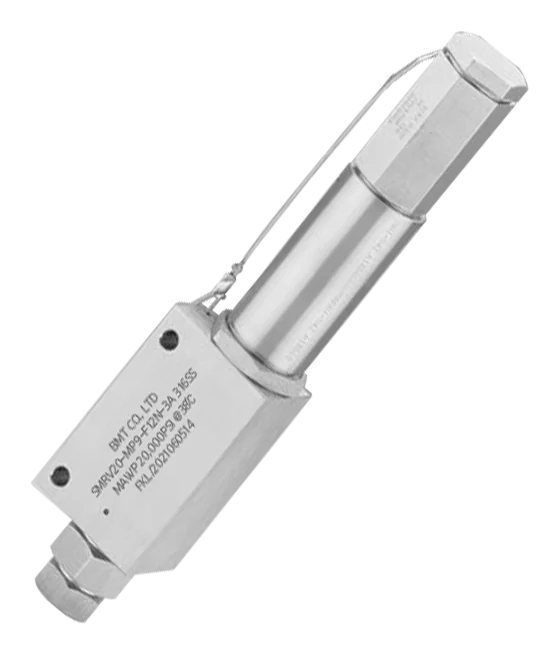

Manufacturer SMRV20 relief-valve photograph; selected pressure grade is not visible.
Medium-pressure valves · SMRV20
SMRV20-MP9-F12N-4A
Medium-pressure relief valve
9/16 in × 3/4 in
Medium-pressure cone & thread × Female NPT
316 Stainless Steel
Specification confirmation required. Specify the final factory set pressure, medium, temperature and required relief capacity in the RFQ. The grade is a range, not a final pressure setting.
Quote request · price and delivery confirmed by our team.
Specifications
- Series
- SMRV20
- Dimensions
- 9/16 in × 3/4 in
- Connection
- Medium-pressure cone & thread × Female NPT
- Material
- 316 Stainless Steel
- Connection
- 9/16 in Medium-pressure cone & thread; 3/4 in Female NPT
- Grade
- 4A
- Set pressure range
- 15000–20000 psig
- Seat
- Soft seat
- Maximum back pressure
- 500 psig
- Operating limit
- System operation must not exceed 90% of the selected set pressure
Specify the final factory set pressure, medium, temperature and required relief capacity in the RFQ. The grade is a range, not a final pressure setting.
Documentation & selection
Check the manufacturer's dimensions and operating limits for your application. Our team can help confirm material, connection and ordering options.
