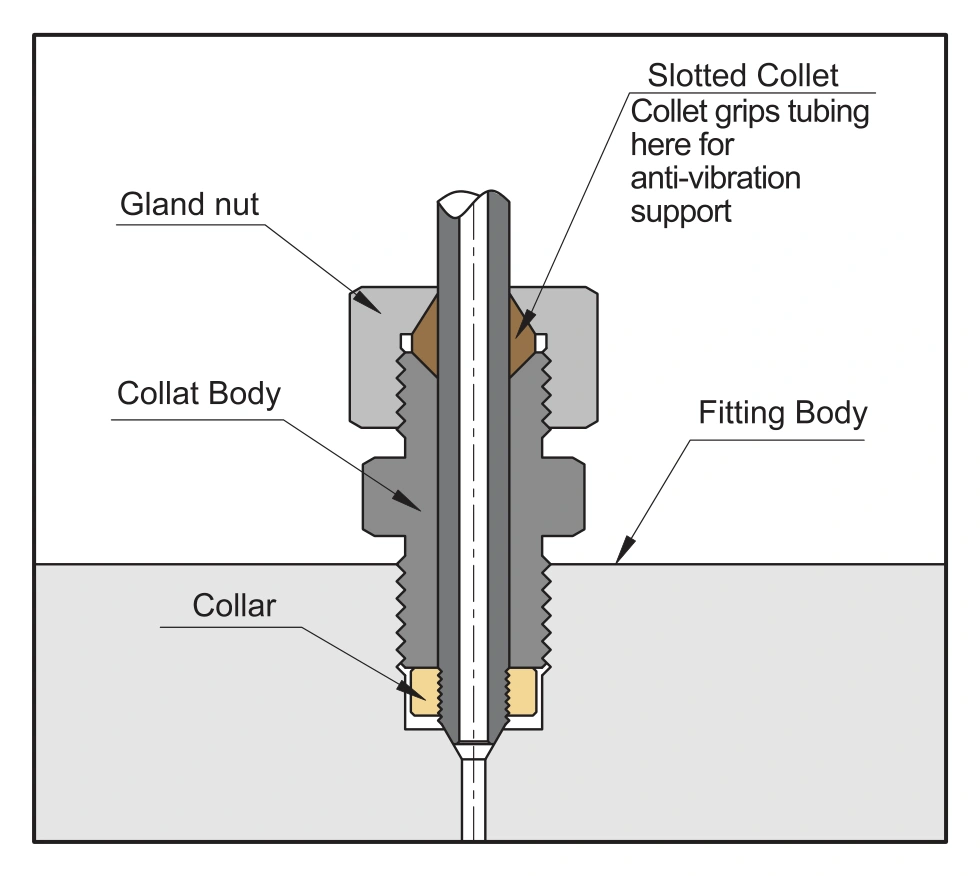

Manufacturer installed cross-section; tubing and fitting body are shown for context.
Medium-pressure cone & thread · SMP-AVCG
SMP-AVCG-12H
Anti-vibration collet gland assembly
3/4 in
Medium-pressure cone & thread accessory
316 Stainless Steel
Quote request · price and delivery confirmed by our team.
Specifications
- Series
- SMP-AVCG
- Dimensions
- 3/4 in
- Connection
- Medium-pressure cone & thread accessory
- Material
- 316 Stainless Steel
- Tube OD
- 3/4 in
- Catalog pressure class
- 20,000 psi
Collet gland assembly. Tubing and fitting body in the installed illustration are context, not included components. Confirm service conditions and component pressure-temperature limits with the quotation.
Documentation & selection
Check the manufacturer's dimensions and operating limits for your application. Our team can help confirm material, connection and ordering options.
Your basket is a quote request. Availability, price and delivery are confirmed in our offer.
