Valves
Process ball valves
Floating and trunnion designs, with forged or cast bodies.
Configure process ball valves Catalog PDFTubing Supply · BMT Superlok
Process Systems
Find the valve. Match the connection. Build your specification.
Configure process and cryogenic valves, pipe flanges, tube-to-flange adapters and hydraulic connections. Add each requirement to one quote basket.
Process catalogs & PDFs10 product families
Valves
Block & bleed valves
Single or double isolation with a separate bleed or vent.
Configure block & bleed valves Catalog PDF
Valves

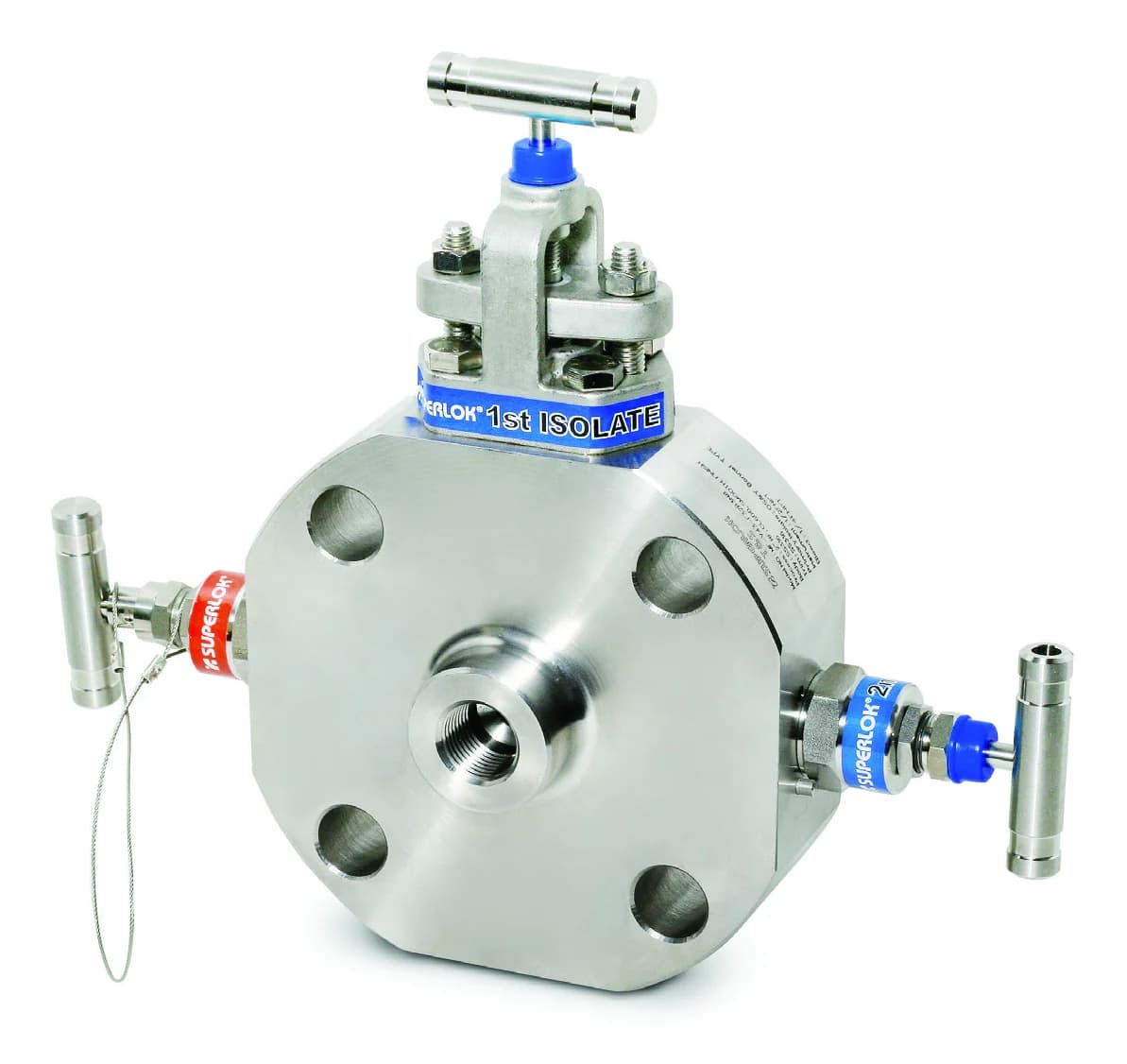

Monoflange valves
Compact process-to-instrument isolation and vent assemblies.
Configure monoflange valves Catalog PDF
Valves
Process globe valves
Forged and cast globe valves for isolation and throttling duties.
Configure process globe valves Catalog PDF
Valves
SAE / ISO ball valves
SBVE isolation valves for SAE J518 and ISO 6164 connections.
Configure sae / iso ball valves Catalog PDF
Connections
Process pipe flanges
Weld neck, slip-on, blind, threaded, socket weld and special flanges.
Configure process pipe flanges Catalog PDF
Connections
Tube-to-flange adapters
SFLA transitions from SUPERLOK tubing to process flanges.
Configure tube-to-flange adapters Catalog PDF
Connections
Hydraulic flanges & adapters
SAE clamps, threaded and welded adapters, blocks, ISO and CETOP flanges.
Configure hydraulic flanges & adapters Catalog PDF
Transfer safety
Cryogenic break-away couplings
SCBAC emergency separation couplings for cryogenic transfer lines.
Configure cryogenic break-away couplings Catalog PDF
Cryogenic
Cryogenic valves
Ball, globe, gate, needle, check and block & bleed valves for low-temperature service.
Configure cryogenic valves Catalog PDFChoose the right connection family
Process pipe flanges
Specify nominal pipe size, flange standard, pressure class, face and bore. A Class 300 flange is not a 300-bar rating. Welding ends also need the pipe schedule or wall thickness.
Tube-to-flange adapters
Specify the tube outside diameter separately from the flange nominal size. Match ASME, DIN, EN or JIS requirements and the sealing face to the equipment connection.
Hydraulic flanges
Specify SAE Code 61 / 62, ISO 6164 or CETOP; then the component type, bolts and mating side. A matching nominal size alone does not establish interchangeability.
