Catalog R10
i-Fitting
Double-ferrule tube fitting with an integrated check ring that gives installers visual confirmation of correct make-up. The flagship BMT Superlok product, supplied by Tubing Supply.
Instrumentation › Fittings
Instrumentation fittings, supplied as a coordinated range
Nine catalog families plus the BMT-patented i-Fitting — produced by BMT Superlok and supplied by Tubing Supply. Compression, threaded, flared, face-seal, DIN, JIS, dielectric, forged and push-on hose fittings, specifiable together for a consistent tubing system.
Produced by BMT Superlok · Supplied by Tubing Supply
Featured
Flagship instrumentation fittings
Catalog R38

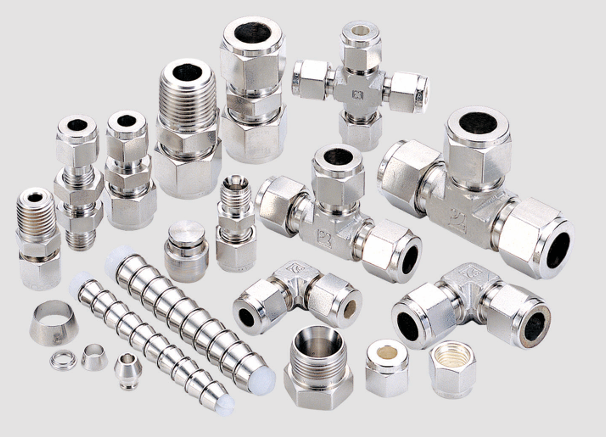

SUPERLOK Tube Fittings
Double-ferrule compression fitting system with body, nut, front ferrule and back ferrule — designed for instrumentation tubing across oil & gas, power, marine and process industries.
Threaded & adaptation
Threaded fittings & adaptation
Thread-form fittings used for instrumentation hook-ups, panel transitions and high-pressure pipework.
Catalog R8
Instrumentation Thread Fittings
NPT, ISO/BSP tapered and ISO/BSP parallel thread options for global instrumentation projects.
Catalog
Forged Fittings
Forged steel socket-weld and threaded fittings for high-pressure pipework, steam, condensate and process utility systems.
Catalog
JIS Tube Fittings
Bite-type tube fittings to JIS B2351 / KS B1535 for medium and heavy wall tubing — common in Asian OEM and process industries.
Tube connection standards
Tube connection standards
Standards-based tube fittings — flared, face-seal, DIN, dielectric and push-on hose — covering the most common international system requirements.
Catalog R4
37° Flared Fittings
Flared tube fittings to SAE J514 with a metal-to-metal flare sealing geometry. Three-piece body, sleeve and nut.
Catalog R15
O-Ring Face Seal Fittings
Captive O-ring face-seal fittings for leak-sensitive fluid systems. Helium leak tested per catalog specification.
Catalog
DIN Tube Fittings
DIN2353 bite-type metric tube connections for hydraulic and process tubing. LL, L and S series for very-light through heavy service.
Catalog
Dielectric Fittings
Electrical isolation fittings for natural-gas pipeline impulse lines and instrumentation exposed to cathodic current. PEEK insulator, Viton O-ring.
Catalog
Push-on Hose Fittings
Push-on hose connections for pneumatic and utility service. Available with Superlok tube, tube adapter, male-pipe and hose-union ends.
All fittings shown here are produced by BMT Superlok and supplied by Tubing Supply. Specification, installation and inspection references are provided in the linked technical catalogs. Suitability depends on selected configuration and application.
Request fitting support
