i-Fitting Technology
Tube fitting technology with built-in installation verification.
SELECT PRODUCTS
i-Fitting part numbers
Choose your quantities and add products to the quote basket.
Choose available options or send your required dimensions and connections.
Loading products…
Another size, material or made-to-order product?Add an unlisted part or an MTO requirement to the same basket.
Find your connection shape
View all series

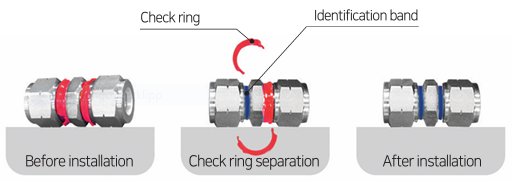

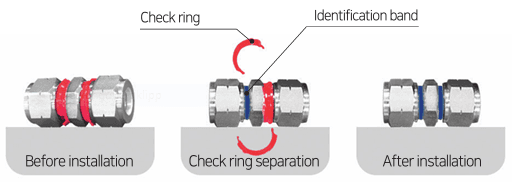

An installation check you can see and feel
The check ring separates at the specified tightening point, providing visual, audible and tactile feedback during installation.
A built-in gap gauge on every fitting
- Functions as a built-in gap gauge.
- Separates at the correct compression point.
- Reduces over- and under-tightening.
- Separate gap-inspection gauge not required after completion.

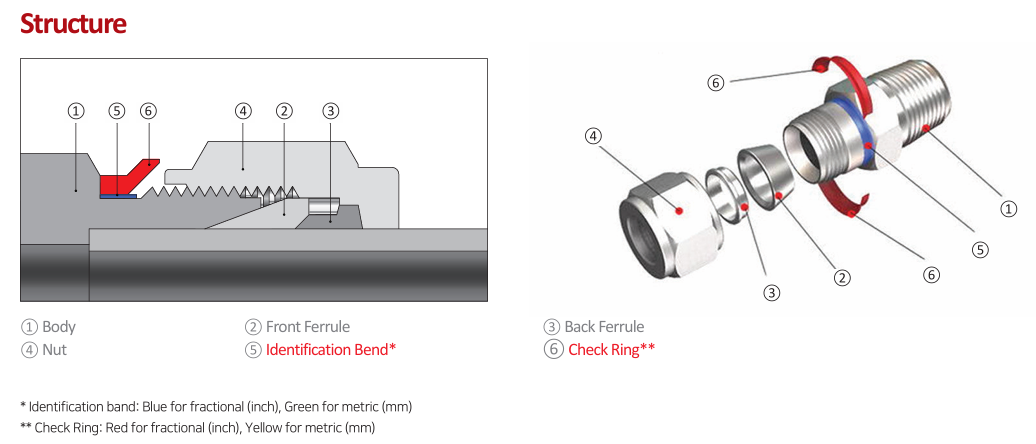

Six components
A double-ferrule compression fitting with two colour-coded components for visual inspection: the identification band and the check ring.

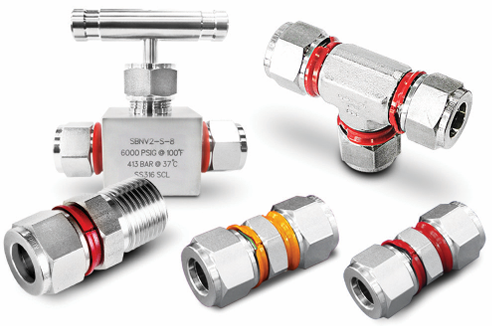

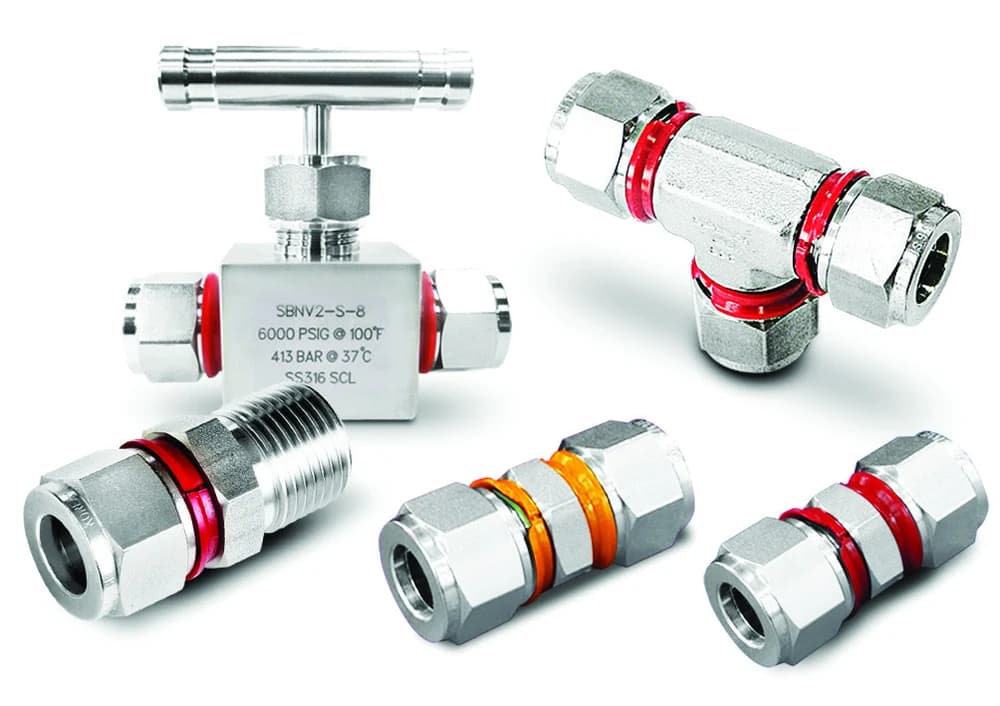

A range of connection geometries

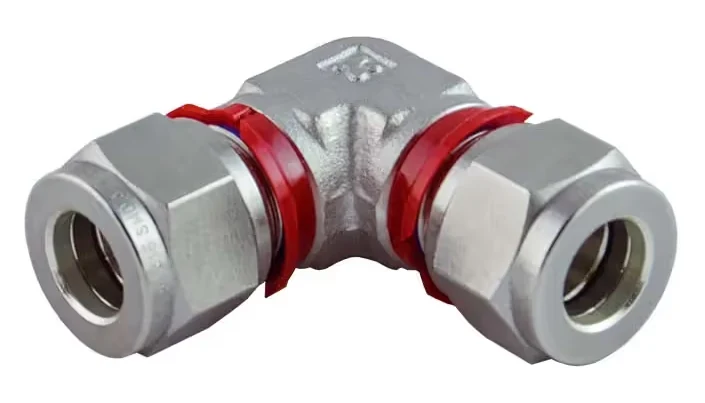

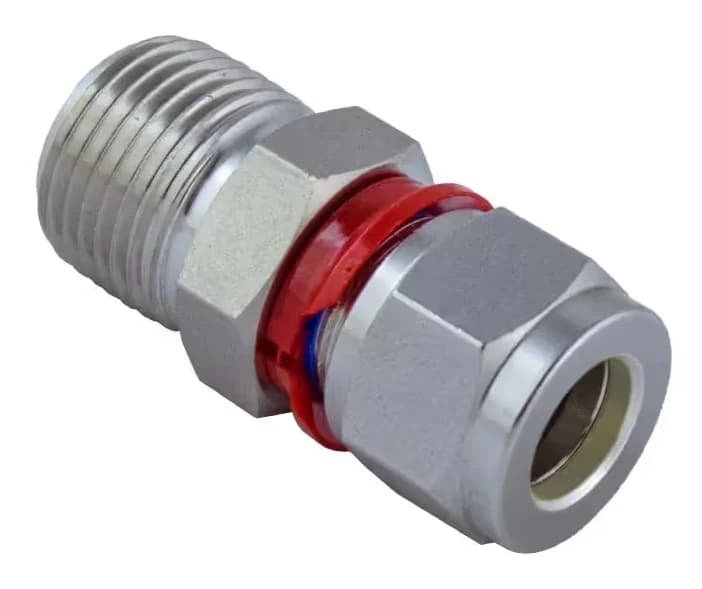

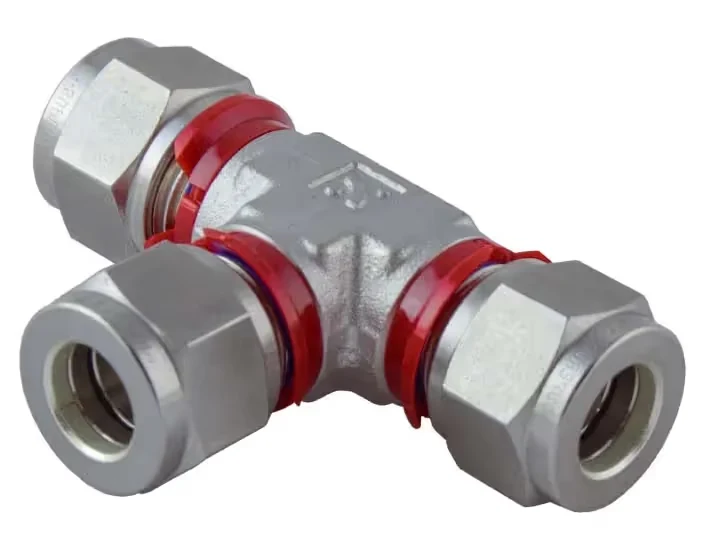

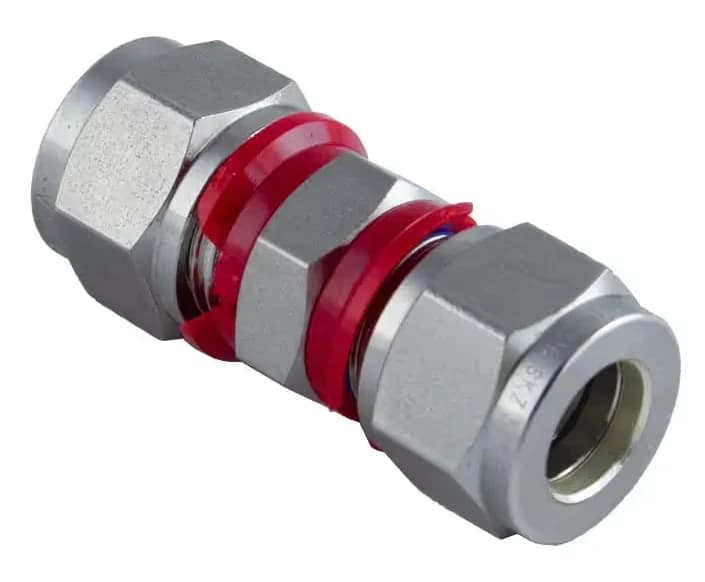

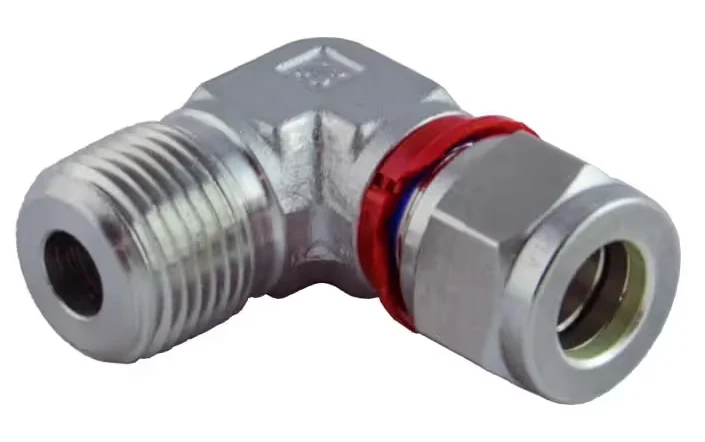

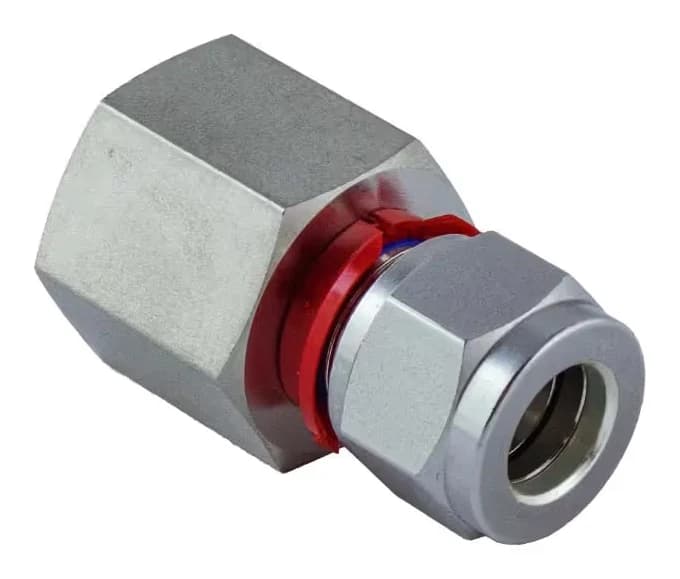

Unions, connectors, elbows, tees, crosses, reducers, O-seal, weld and SAE/MS connectors.
Three steps to a verified connection
Installed with the same procedure as a conventional SUPERLOK fitting. The check ring signals completion.
Prepare the fitting
Body, nut, front and back ferrules, and check ring.
Insert and finger-tighten
Insert the tube to the shoulder. Rotate the nut finger-tight until the tube does not turn by hand.
Tighten until separation
Hold the body steady. Tighten the nut until the check ring separates.
Applications & industries
Where i-Fitting is used, and why it belongs there.
01
Applications
- Instrumentation and sampling lines
- Hydraulic and pneumatic control lines
- Gas and liquid process tubing
- Analyzer systems and signal lines
- Chemical injection systems
- High-pressure test and calibration connections
02
Industries
- Oil & Gas — upstream, midstream, downstream
- Hydrogen and clean energy systems
- Chemical and petrochemical processing
- Power generation
- Marine and offshore
- Semiconductor and high-purity systems
03
Why i-Fitting in these applications
- Installation can be visually verified (integrated check ring)
- Reduces risk of under- and over-tightening
- Consistent make-up across operators and installations
- Reduces need for post-install inspection tools
- Supports efficient commissioning and inspection processes
- Suitable for vibration and thermal cycling conditions
Installation demonstration
Correct installation and check ring separation, shown in real conditions.
Demonstrates check ring separation and correct installation method.
The full i-Fitting catalog
Product specifications, dimensions, and installation data.
