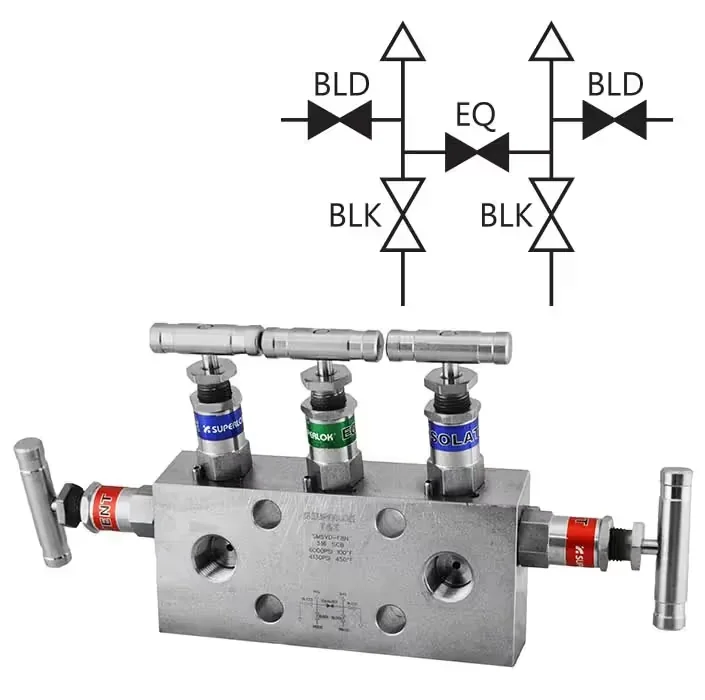

Manufacturer series illustration; connections and dimensions vary by part number.
SM2V / SM3V / SM5V manifolds · SM5VD
SM5VD-F8N
5-valve instrument manifold
1/2 in
Instrument flange
316 Stainless Steel
Quote request · price and delivery confirmed by our team.
Specifications
- Series
- SM5VD
- Dimensions
- 1/2 in
- Connection
- Instrument flange
- Material
- 316 Stainless Steel
- Mounting
- Vertical direct
- Process
- 1/2 in Female NPT
- Instrument
- Flange
- Bonnet
- Standard vee-tip
- Packing
- PTFE
- Bleed
- 1/4 in Female NPT
Documentation & selection
Check the manufacturer's dimensions and operating limits for your application. Our team can help confirm material, connection and ordering options.
