13 matching part numbers

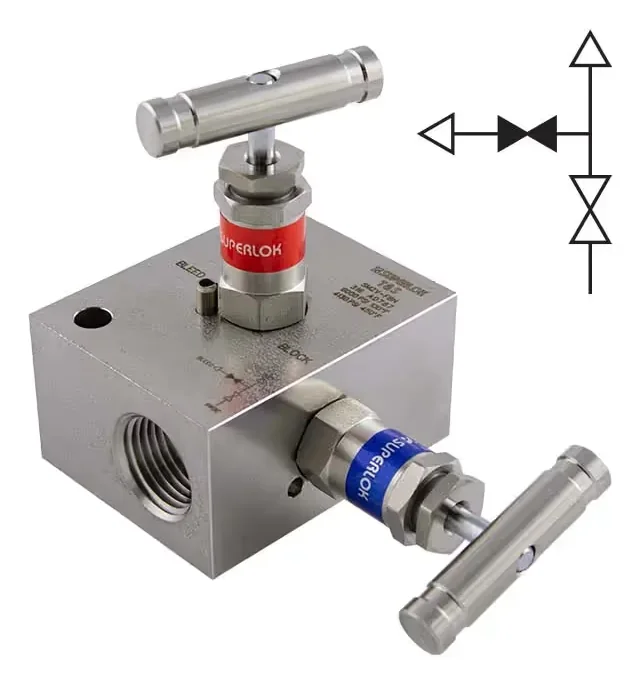

SUPERLOK SM2V instrumentation manifold with flow-path diagramView image ↗Series image

SM2V · SM2V / SM3V / SM5V manifolds

SM2V-F8N

2-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal remote
Process
1/2 in Female NPT
Instrument
1/2 in Female NPT
Bonnet
Standard vee-tip
Packing
PTFE
Bleed
1/2 in Female NPT
Valve functions
1 block, 1 bleed
Catalog · page 5 Ordering options · page 2 Product page
1/2 inFemale NPT316 Stainless Steel

Quote request · price and delivery confirmed by our team.

BMT SUPERLOK SM2VD two-valve manifold, vertical direct mounting; manufacturer catalog illustration.View image ↗Catalog drawing

SM2VD · SM2V / SM3V / SM5V manifolds

SM2VD-F8N

2-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Vertical direct
Process
1/2 in Female NPT
Instrument
Flange
Bonnet
Standard vee-tip
Packing
PTFE
Bleed
1/4 in Female NPT
Valve functions
1 block, 1 bleed
Catalog · page 5 Ordering options · page 2 Product page
1/2 inInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.

BMT SUPERLOK SM2VF two-valve manifold, horizontal single-flange direct mounting; manufacturer catalog illustration.View image ↗Catalog drawing

SM2VF · SM2V / SM3V / SM5V manifolds

SM2VF-F8N

2-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal single flange
Process
1/2 in Female NPT
Instrument
Flange
Bonnet
Standard vee-tip
Packing
PTFE
Bleed
1/4 in Female NPT
Valve functions
1 block, 1 bleed
Catalog · page 5 Ordering options · page 2 Product page
1/2 inInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.

BMT SUPERLOK SM3V three-valve manifold, horizontal remote mounting; manufacturer catalog illustration.View image ↗Catalog drawing

SM3V · SM2V / SM3V / SM5V manifolds

SM3V-F8N

3-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal remote
Process
1/2 in Female NPT
Instrument
1/2 in Female NPT
Bonnet
Standard vee-tip
Packing
PTFE
Valve functions
2 blocks, 1 equalizer, no independent bleed valve
Static / test ports
2 × 1/4 in NPT; not independent bleed valves
Catalog · page 6 Ordering options · page 2 Product page
1/2 inFemale NPT316 Stainless Steel

Quote request · price and delivery confirmed by our team.

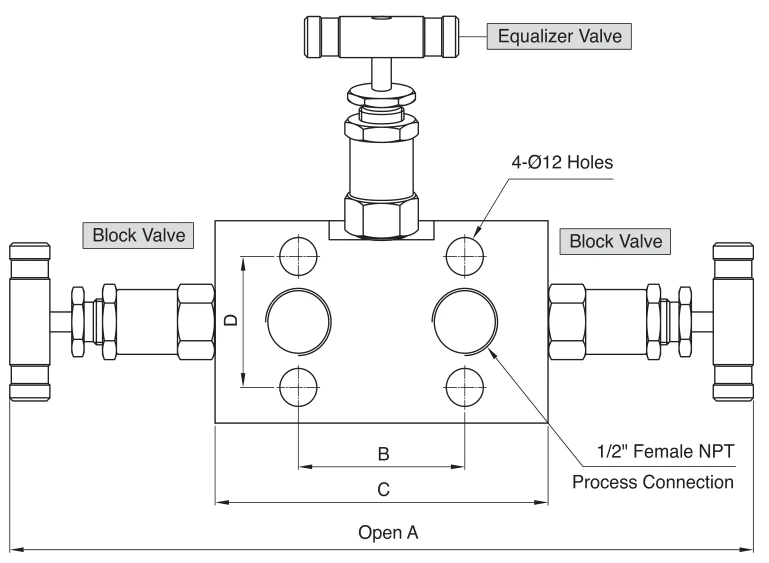

BMT SUPERLOK SM3VD three-valve manifold, vertical direct mounting; manufacturer catalog illustration.View image ↗Catalog drawing

SM3VD · SM2V / SM3V / SM5V manifolds

SM3VD-F8N

3-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Vertical direct
Process
1/2 in Female NPT
Instrument
Flange
Bonnet
Standard vee-tip
Packing
PTFE
Valve functions
2 blocks, 1 equalizer, no independent bleed valve
Catalog · page 7 Ordering options · page 2 Product page
1/2 inInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.

BMT SUPERLOK SM3VDF three-valve manifold, horizontal dual-flange direct mounting; manufacturer catalog illustration.View image ↗Catalog drawing

SM3VDF · SM2V / SM3V / SM5V manifolds

SM3VDF

3-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal dual flange
Process
Flange
Instrument
Flange
Bonnet
Standard vee-tip
Packing
PTFE
Valve functions
2 blocks, 1 equalizer, no independent bleed valve
Static / test ports
2 × 1/4 in NPT; not independent bleed valves
Catalog · page 7 Ordering options · page 2 Product page
Flange × flangeInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.

SUPERLOK SM3VF instrumentation manifold with flow-path diagramView image ↗Series image

SM3VF · SM2V / SM3V / SM5V manifolds

SM3VF-F8N

3-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal single flange
Process
1/2 in Female NPT
Instrument
Flange
Bonnet
Standard vee-tip
Packing
PTFE
Valve functions
2 blocks, 1 equalizer, no independent bleed valve
Static / test ports
2 × 1/4 in NPT; not independent bleed valves
Catalog · page 6 Ordering options · page 2 Product page
1/2 inInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.

BMT SUPERLOK SM5V five-valve manifold, horizontal remote mounting; manufacturer catalog illustration.View image ↗Catalog drawing

SM5V · SM2V / SM3V / SM5V manifolds

SM5V-F8N

5-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal remote
Process
1/2 in Female NPT
Instrument
1/2 in Female NPT
Bonnet
Standard vee-tip
Packing
PTFE
Bleed
1 × 1/4 in Female NPT
Valve functions
2 blocks, 2 equalizers, 1 central bleed valve
Static / test ports
2 × 1/4 in NPT; not independent bleed valves
Catalog · page 8 Ordering options · page 2 Product page
1/2 inFemale NPT316 Stainless Steel

Quote request · price and delivery confirmed by our team.

SUPERLOK SM5VD instrumentation manifold with flow-path diagramView image ↗Series image

SM5VD · SM2V / SM3V / SM5V manifolds

SM5VD-F8N

5-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Vertical direct
Process
1/2 in Female NPT
Instrument
Flange
Bonnet
Standard vee-tip
Packing
PTFE
Bleed
2 × 1/4 in Female NPT
Valve functions
2 blocks, 1 equalizer, 2 bleed valves
Catalog · page 9 Ordering options · page 2 Product page
1/2 inInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.

SUPERLOK SM5VDF instrumentation manifold with flow-path diagramView image ↗Series image

SM5VDF · SM2V / SM3V / SM5V manifolds

SM5VDF

5-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal dual flange
Process
Flange
Instrument
Flange
Bonnet
Standard vee-tip
Packing
PTFE
Bleed
1 × 1/4 in Female NPT
Valve functions
2 blocks, 2 equalizers, 1 central bleed valve
Catalog · page 9 Ordering options · page 2 Product page
Flange × flangeInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.

SUPERLOK SM5VDF instrumentation manifold with flow-path diagramView image ↗Series image

SM5VDF6 · SM2V / SM3V / SM5V manifolds

SM5VDF6-F8N-SS

5-valve instrument manifold

Manufacturer mounting-family image; the selected soft-seat bonnet assembly differs.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal dual flange
Process
Flange
Instrument
Flange
Bonnet
Soft seat
Packing
PTFE
Bleed
1 × 1/4 in Female NPT
Valve functions
2 blocks, 2 equalizers, 1 central bleed valve
Catalog · page 9 Ordering options · page 2 Product page
Flange × flangeInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.

SUPERLOK SM5VF instrumentation manifold with flow-path diagramView image ↗Series image

SM5VF · SM2V / SM3V / SM5V manifolds

SM5VF-F8N

5-valve instrument manifold

Manufacturer series illustration; connections and dimensions vary by part number.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal single flange
Process
1/2 in Female NPT
Instrument
Flange
Bonnet
Standard vee-tip
Packing
PTFE
Bleed
1 × 1/4 in Female NPT
Valve functions
2 blocks, 2 equalizers, 1 central bleed valve
Static / test ports
2 × 1/4 in NPT; not independent bleed valves
Catalog · page 8 Ordering options · page 2 Product page
1/2 inInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.

SUPERLOK SM5VF instrumentation manifold with flow-path diagramView image ↗Series image

SM5VF6 · SM2V / SM3V / SM5V manifolds

SM5VF6-F8N-SS

5-valve instrument manifold

Manufacturer mounting-family image; the selected soft-seat bonnet assembly differs.

Details & documentation
Material
316 Stainless Steel
Mounting
Horizontal single flange
Process
1/2 in Female NPT
Instrument
Flange
Bonnet
Soft seat
Packing
PTFE
Bleed
1 × 1/4 in Female NPT
Valve functions
2 blocks, 2 equalizers, 1 central bleed valve
Static / test ports
2 × 1/4 in NPT; not independent bleed valves
Catalog · page 8 Ordering options · page 2 Product page
1/2 inInstrument flange316 Stainless Steel

Quote request · price and delivery confirmed by our team.
